		Catalogue of drills

Work-piece material	Indication and description	Usage	Delivered extent	Drill material
Metal	CODE 08	Go to the shop	1,5-16 mm per 0,5 mm	HSS Co 8%
Metal	DIN 338 RKT Jobber drill with thickened web and self-centering point. Material HSS Cobalt 8%.	Very effective and strong drill for drilling tough materials with tensile strenght to 1200 MPa, e.g. stainless steels, titanium alloys, corrosion, acid or heat resistant austenitic steels, used for special alloys as hastelloy, inconell, nimonic, HARDOX 400 and 500.
Metal	CODE 07	Go to the shop	0,6-14 mm per 0,1; 14-16 mm per 0,5 mm	HSS Co 5%
Metal	DIN 338 RTi Jobber drill with thickened web and self-centering point. Material HSS Cobalt 5%.	Very effective drill for drilling stainless steels, titan alloys, corrosion-acid-heat resistant austenitic steels. It is suitable for very strong and not very tough steels with tensile strength over 900 MPa. Drill can be used for special alloys e.g. hastelloy, inconell, nimonic, etc. under specific conditions.
Metal	CODE 06		0,3-16 mm per 0,1 mm	HSS
Metal	DIN 338 RN Jobber drill with straight shank, grinded. Material HSS.	Drills for precise drilling unalloyed steels or alloyed steels, cast steels up to tensile strength of 900 MPa, grey, malleable or shapeable cast iron, sintered steels, Al-alloys with discontinuous chip, bronze, graphite.
Metal	CODE E6	Go to the shop	0,3-16 mm per 0,1 mm	HSS
Metal	DIN 338 RN Jobber drill with straight shank, grinded. Material HSS.	Drills for precise drilling unalloyed steels or alloyed steels, cast steels up to tensile strength of 900 MPa, grey, malleable or shapeable cast iron, sintered steels, Al-alloys with discontinuous chip, bronze, graphite.
Metal	CODE 03	Go to the shop	1-13 mm per 0,5 mm and screw dimensions	HSS
Metal	DIN 338 RN Jobber drill with straight shank, grinded, TiN coated. Material HSS.	Efficient drills are recommended for drilling unalloyed steels or alloyed steels, cast steels up to tensile strength of 900 MPa, grey, malleable or shapeable cast iron, sintered steels, Al-alloys with discontinuous chip, bronze.
Metal	CODE 05		1-15 mm per 0,1 mm; 15-20 mm per 0,25 mm	HSS
Metal	DIN 338 RN Jobber drill with straight shank, roll forged (1-1,9 mm grinded) passivated. Material HSS.	Drills for drilling unalloyed steels or alloyed steels, cast steels up to tensile strength of 900 MPa, grey, malleable or shapeable cast iron, sintered steels, Al-alloys with discontinuous chip, bronze, tough brass etc.
Metal	CODE 01	Go to the shop	0,5-14 mm per 0,1 mm; 14-20 mm per 0,5 mm	HSS
Metal	DIN 338 RN Jobber drill with straight shank, roll forged, black finish. Material HSS.	Drill for drilling unalloyed steels, Al-alloys with discontinuous chip and plastic.
Metal	CODE 16	Go to the shop	1,5-14 mm per 0,1 mm; 14-16 mm per 0,5 mm	HSS
Metal	DIN 338 LN Left drill for metal, grinded. Material HSS.	Left drill for precise drilling of unalloyed and alloyed steels, cast steels up to tensile strength of 900 MPa, grey, malleable or shapeable cast iron, sintered steels, Al-alloys with discontinuous chip, bronze, graphite.
Non-ferrous metals	CODE 20		2-16 mm per 0,5 mm	HSS
Non-ferrous metals	DIN 338 H Drill for hard and fragile materials with tear type chip, helix angle 12°. Material HSS.	Drill for drilling non-ferrous metals, plastics, artifical resin and horn-stone, transite, slate, mica, hard rubber.
Non-ferrous metals	CODE 24		1,5-16 mm per 0,5 mm	HSS
Non-ferrous metals	DIN 338 W Drill for soft and tough materials with protracted chip, helix angle 40°. Material HSS.	Drill for drilling aluminium alloys, zinc, plastics and wood.
Metal	CODE 43	Go to the shop	10,5-20 mm per 0,5 mm	HSS
Metal	DIN 338 RN Drill for metal with straight shank, reduced to 13 or 10 mm, roll forged, black finish. Material HSS.	Drill for drilling holes with diameter of 13,5 - 20 mm or 10,5 - 13 mm of unalloyed steels, Al-alloys with discontinuous chip, plastics with drilling machine with chuck to 13 or 10mm.
Metal Non-ferrous metals	CODE 45	Go to the shop	0,20-1,45 mm per 0,01 mm	HSS
Metal Non-ferrous metals	DIN 1899A RN Micro drills with thickened straight shank, point angle 118°. Material HSS.	Drill with thickened straight shank for the drilling usual metallic or non-ferrous materials, determined for the fine mechanics, modelling etc.
Metal	CODE 25	Go to the shop	2-14 mm per 0,1 mm; 14-16 mm per 0,5 mm	HSS Co 5%
Metal	DIN 340 GT 100 Drill of extended size for metal with straight shank and self-centering point, grinded, with thickened web and wider flute for better chip flow while preserving the toughness of the drill. Material HSS Co 5%.	Drill for precise and demanding deep-hole drilling or through guide bushes, suitable for materials difficult for shaping: alloyed-steels, cast steels, steels for volume shaping, steels for case hardening and for refining and stainless steels.
Metal	CODE 15	Go to the shop	1-16 mm per 0,1 mm	HSS
Metal	DIN 340 RN Extended drill for metal, grinded. Material HSS.	Drill for precise deep-hole drilling or through guide bushes to unalloyed and alloyed steels, cast steels up to tensile strength of 900 MPa, grey, malleable or shapeable cast iron, sintered steels, Al-alloys with discontinuous chip, bronze, graphite.
Metal	CODE 02	Go to the shop	1-14 mm per 0,1 mm; 14-20 mm per 0,25 mm	HSS
Metal	DIN 340 RN Extended drill for metal with straight shank, black finish. Material HSS.	Drill for drilling unalloyed steels or alloyed steels, cast steels up to tensile strength of 900 MPa, grey, malleable or shapeable cast iron, sintered steels, Al-alloys with discontinuous chip, bronze.
Metal	CODE 13 I	Length 125-295 mm	2-13 mm per 0,5 (0,1) mm	HSS Co 5%
	CODE 13 II	Length 190-380 mm	2,7-13 mm per 0,5 (0,1) mm	HSS Co 5%
	CODE 13 III	Length 265-480 mm	3,4-13 mm per 0,5 (0,1) mm	HSS Co 5%
	DIN 1869 GT 100 Extra long drill with self-centering point, grinded, with thickened web and wider flute for better chip flow while preserving the toughness of the drill. Material HSS Co 5%.	Drill for precise deep hole drilling in difficult conditions (not sufficient chip flow and coolling, while drilling through guide bushes, for NC machines etc.). Suitable for materials difficult for shaping, alloyed steels, cast-steels, steels for volume shaping, steels for case-hardening and refining, stainless steels. Suitable for drilling of crank shafts.
Metal	CODE 14 I	Length 125-295 mm	2-13 mm per 0,5 (0,1) mm	HSS
	CODE 14 II	Length 190-380 mm	2,7-13 mm per 0,5 (0,1) mm	HSS
	CODE 14 III	Length 265-480 mm	3,4-13 mm per 0,5 (0,1) mm	HSS
	DIN 1869 GT 100 Extra long drill with straight shank, grinded, with thickened web and wider flute for better chip flow while preserving the toughness of the drill. Material HSS.	Drill for precise deep hole drilling in difficult conditions (not sufficient chip flow and coolling, while drilling through guide bushes, for NC machines etc.). Suitable for alloyed steels and unalloyed steels and kinds of cast iron with tensile strength over 800 MPa.
Metal	CODE 82 I	length 62-131 mm	3-20 mm per 0,5 mm	Carbid
	CODE 82 II	length 66-153 mm	3-20 mm per 0,5 mm	Carbid
	DIN 6537 Solid carbide drill for metal with straight oversize shank, grinded. Material Solid carbide.	Drill for very demanding drilling of processed steel, also heat treated with high hardness and tensile strength and other materials difficult for shaping. It can be used only in stable machines.
Metal	CODE 83 I	length 62-131 mm	3-20 mm per 0,5 mm	Carbid
	CODE 83 II	length 66-153 mm	3-20 mm per 0,5 mm	Carbid
	CODE 83 III	length 73-198 mm	3-20 mm per 0,5 mm	Carbid
	DIN 6537 High-performance solid carbide drill with internal cooling with straight shank. Material solid carbide.	Very efficient drill for the drilling of long and short-chipping materials such as structural and case hardened steels, cast steels, heat-treatable steels and alloyed steels with a tensile strenght up to 1200 MPa, including carbon steels, cast iron and high-alloyed AlSi-alloys.
Metal	CODE 80	Go to the shop	3-20 mm per 1 mm	Carbid
Metal	Drill for metal with carbide tablet with straight shank, melting temperature of the used melting iron is 920°C.	Drill for precise drilling of processed steel, heat treated with high hardness up to 40 HRC and tightness and other materials difficult for shaping.
Metal	CODE 11	Go to the shop	1-13 mm per 0,1 mm	HSS Co 5%
Metal	DIN 1897 Short drill for metal with straight shank, highly effective, with self-centring point. Material HSS Cobalt 5%.	Effective and stable drill for drilling stainless steels and other alloyed steels-acid resistant, spring loaded, austenitic etc. Preferably suitable for usage in NC machines and turret lathes.
Metal	CODE 19	Go to the shop	5, 6, 7, 8, 10 mm	HSS Co 5%
Metal	Drill for welding spots, grinded, with special point. Material HSS Cobalt 5%.	Highly effective drill with short helix and point for drilling welding spots. Drill can be used very effectively even without centre punch. Anyone drilling plate will appreciate it.
Metal	CODE 12	Go to the shop	1,6-10 mm	HSS
Metal	Double-ended body drill, grinded, with self-centering point. Material HSS.	Drill for precise drilling of metal plates and other thin walled materials, suitable for drilling of holes for rivets, appreciated by tinsmiths and body-builders.
Metal	CODE 18	Go to the shop	1; 1,25; 1,6; 2; 2,5; 3,15; 4; 5; 6,3 mm	HSS
Metal	DIN 333A 60° Centering drill for metal, grinded. Material HSS.	Drill suitable for precise drilling of the centre of the work-piece while lathe work.
Metal	CODE 73	Go to the shop	for screws M4 - M8	HSS
Metal	DIN 8376 Gradual drill with straight shank, grinded with four lands, countersink angle of the second degree is 180°. Material HSS.	Gradual drill for drilling the hole together with countersink for screw with cylindrical head, for steels and cast steels with tensile strength up to 800 MPa, for grey, malleable or shapeable cast iron, Al-alloys etc.

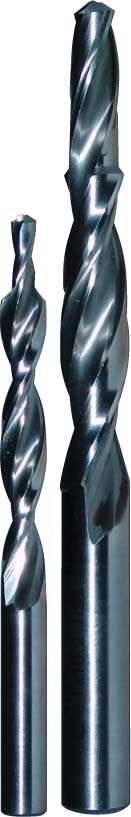

Metal	CODE 74	Go to the shop	for screws M4 - M8, resp. M4 - M14	HSS
Metal	DIN 8374 and 8378 Gradual drill with straight shank, grinded, with four lands, countersink angle of the second degree is 90°. Material HSS.	Gradual drill for drilling the hole together with countersink for screw with flush head, for steels and cast steels with tensile strength up to 800 MPa, for grey, malleable or shapeable cast iron, Al-alloys etc.
Metal	CODE 81	Go to the shop	8-40 mm per 1 mm	Carbid
Metal	Carbide tipped (K10) drill for metal with taper shank, the melting temperature of the used melting iron is 920°C.	Drill for precise drilling processed steels, heat treated with high hardness (up to 40 HRC) and tensile strength and other materials difficult for shaping.
Metal	CODE 10	Go to the shop	10-50 mm per 1 mm	HSS Co 8%
Metal	Drill for metal with taper shank, very thick web, special edge and steep helix. Material HSS Cobalt 8%.	Highly effective drill for drilling materials very difficult for shaping (eg. HARDOX and armoured plates).
Metal	CODE 26	Go to the shop	5-50 mm per 1 mm (0,5 mm)	HSS Co 5%
Metal	DIN 345 RN Drill for metal with taper shank. Material HSS Cobalt 5%.	Very effective drill for drilling materials difficult for shaping eg. stainless steels, titan alloys, austenitic steels, corrosion-acid-heat resistant. Suitable also for high tensile strength and not very tough steels with strength of 900 MPa.
Metal	CODE 04	Go to the shop	2-90 mm	HSS
Metal	DIN 345 RN Drill for metal with taper shank. Material HSS.	Drill for drilling unalloyed or alloyed steels, cast steels up to tensile strength of 900 MPa, grey, malleable or shapeable cast iron, sintered steels, Al-alloys, with discontinuous chip, bronze, tough brass (yellow copper) etc.

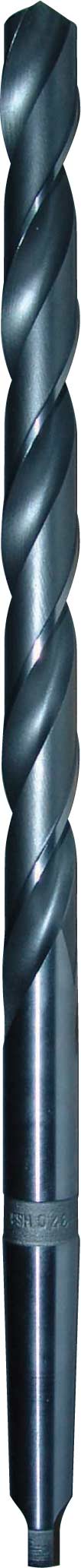

Metal	CODE 27 I	Length 181-470 mm	8-50 mm per 1 (0,5) mm	HSS
	CODE 27 II	Length 265-605 mm	8-50 mm per 1 (0,5) mm	HSS
	CODE 27 III	Length 330-765 mm	8-50 mm per 1 (0,5) mm	HSS
	DIN 341 RN and DIN 1870 RN Extra long drill for metal with taper shank. Material HSS.	Drills for precise drilling of deep holes into unalloyed steels or alloyed steels, cast steels up to tensile strength of 900 MPa, grey, malleable or shapeable cast iron, sintered steels, Al-alloys with discontinuous chip, bronze, tough brass etc.
Metal	CODE 75	Go to the shop	for screws M5 - M20	HSS
Metal	DIN 8377 Gradual drill for metal with taper shank, grinded with four lands, countersink angle of the second degree is 180°. Material HSS.	Gradual drill for drilling the hole together with countersink for screw with cylindrical head, for steels and cast steels with tensile strength up to 800 MPa, for grey, malleable or shapeable cast iron, Al-alloys etc.

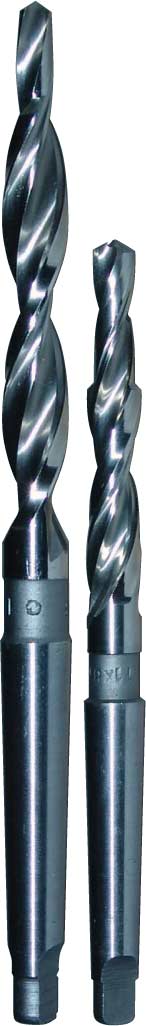

Metal	CODE 76	Go to the shop	for screws M5 - M20, resp. M8 - M20	HSS
Metal	DIN 8375 and 8379 Gradual drill for metal with taper shank, grinded with four lands, countersink angle of the second degree is 90°. Material HSS.	Gradual drill for drilling the hole together with countersink for screw with flush head, for steels and cast steels with tensile strength up to 800 MPa, for grey, malleable or shapeable cast iron, Al-alloys etc.
Metal	CODE 42	Go to the shop	1,5; 2; 2,5; 3; 4; 5; 6 mm	HSS
Metal	DIN 338 RN Drills with Hexagonal shank 1/4"-6,35 mm to be held in quick change chuck adapter. Material HSS.	Recommended for drilling metals or alloys. Hexagonal shank to be held into quick change chuck adapter.

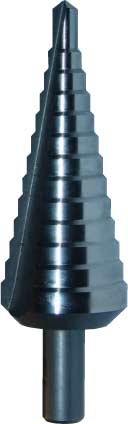

Metal	CODE 22	Go to the shop	4-12, 6-38, 6-28, 3, 6-37 mm, ...	HSS Co 5% HSS
Metal	Gradual drill for metal as well as plastic, more diameters equipment. Material HSS Co 5% or HSS.	The only instrument which can drill and deburr several drill diameters to steel plates of thickness up to 4 mm and for non-ferrous metal, stainless plates and plastics. Suitable for those working with thin-wall materials.
Wood	CODE 30	Go to the shop	3-16 mm per 1 mm	HSS
Wood	Dowell drill with centering point and special cutting edge geometry. Material HSS.	Dowell drill for drilling wood, chipboard, plywood etc.
Wood	CODE 17	Go to the shop	5x40, 5x50, 7x50, 7x70 mm	HSS
Wood	Drill for screws confirmate, three steps, grinded. Material HSS.	For furniture producers. It can drill a gradual hole for special furniture screw.
Wood	CODE 31	Go to the shop	6 and 8 mm	HSS
Wood	Drill saw, grinded. TiN coated. Material HSS.	After drilling the hole, it is possible to mill slots or different shapes to materials made of wood, chipboard, plywood, plaster board, plastics.
Wood	CODE 37 I	Length 235 mm	6-32 mm per 2 mm	HCS
	CODE 37 II	Length 460 mm	6-32 mm per 2 mm	HCS
	Auger bit "Lewis" drill for wood, length 235 and 460 mm, special edge. Material HCS.	Drill with the centring point and special cutting edge geometry for drilling long and precise holes to wood (e.g. prisma), chipboard, plywood etc.
Wood	CODE 39	Go to the shop	15-40 per 5 mm	HCS
Wood	Forstner drill bit for wood, centering point. Material HCS.	Drill with the centring point for drilling wood, chipboard, plywood etc.
Concrete	CODE 50 I	standard length	3-25 mm	Carbid
	CODE 50 II	Length 200 mm	6-16 mm per 2 mm	Carbid
	CODE 50 III	Length 300 mm	6-20 mm per 2 mm + 25 mm	Carbid
	CODE 50 IV	Length 400 mm	6-22 mm per 2 mm + 6,5; 13; 25 mm	Carbid
	CODE 50 V	Length 600 mm	8-20 mm per 2 mm	Carbid
	Tungsten carbide drill for stone with straight shank, milled with soldered plate made of hard metal.	Drill for stone, concrete and masonry for percusion and rotation drilling.
Concrete	CODE 60 I	Length 110 mm	4; 5; 5,5; 6; 6,5; 7; 8; 10 mm	Carbid
	CODE 60 II	Length 160 mm	4-16 mm per 1 mm + 5,5; 6,5; 9,5 mm	Carbid
	CODE 60 III	Length 210 mm	5-20 mm	Carbid
	CODE 60 IV	Length 260 mm	6-26 mm	Carbid
	CODE 60 V	Length 310 mm	6-24 mm per 2 mm + 7; 13; 19; 25 mm	Carbid
	CODE 60 VI	Length 450 mm	6-26 mm per 2 mm + 13; 15; 19; 25 mm	Carbid
	CODE 60 VII	Length 600 mm	10-24 mm per 2 mm	Carbid
	CODE 60 VIII	Length 800 mm	12-20 mm per 4 mm	Carbid
	CODE 60 IX	Length 1000 mm	10-20 mm per 2 mm	Carbid
	Hammer drill for concrete with SDS plus clamping, milled with soldered plate made of hard metal.	Very effective drill for stone, concrete and masonry for percusion and rotation drilling, very robust and efficient.
Concrete	CODE 61 I	Lenght 200mm	12 - 26mm	Carbid
	CODE 61 II	Lenght 250mm	28 - 40mm	Carbid
	CODE 60 III	Lenght 400mm	12 - 26mm	Carbid
	CODE 61 IV	Lenght 450mm	28 - 50mm	Carbid
	CODE 61 V	Lenght 550mm	12 - 35mm	Carbid
	CODE 61 VI	Lenght 800mm	16 - 40mm	Carbid
	CODE 61 VII	Lenght 1200mm	22 - 40mm	Carbid
	SDS MAX drill for concrete with soldered carbide plate, from diameter 16mm with 4 cutting edges, which are made of hard metal.	Very effective drill for drilling concrete and reinforced concrete, stone, masonry. For all drilling machines with SDS MAX clamping.
All materials	CODE 70	Go to the shop	3-12 mm	Carbid
All materials	Carbide tipped straight shank drill for all materials. Material - chromevanadium steels with soldered carbide plate.	Drill for concrete, stone, masonry, steels, ceramics, wood and other materials.
All materials	CODE 71	Go to the shop	4-12 mm	Carbid
All materials	Carbide tipped straight shank drill PROFI for all materials. Material - chromevanadium steels with soldered carbide plate.	Drill for concrete, stone, masonry, steels, ceramics, wood, glass and other materials.
